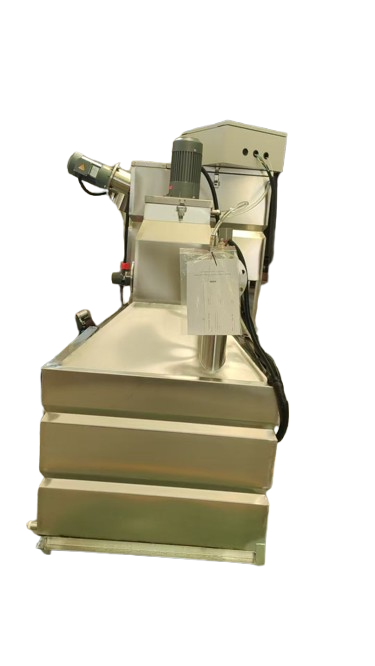

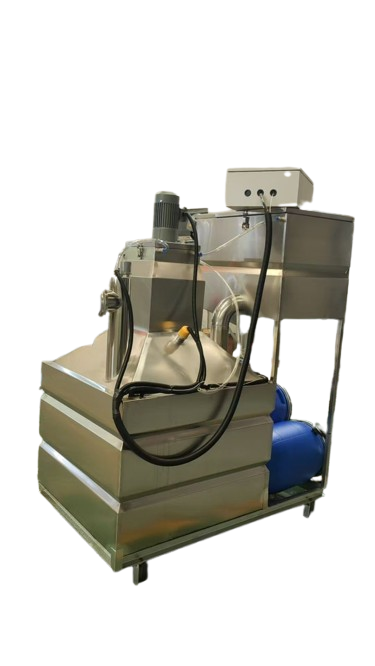

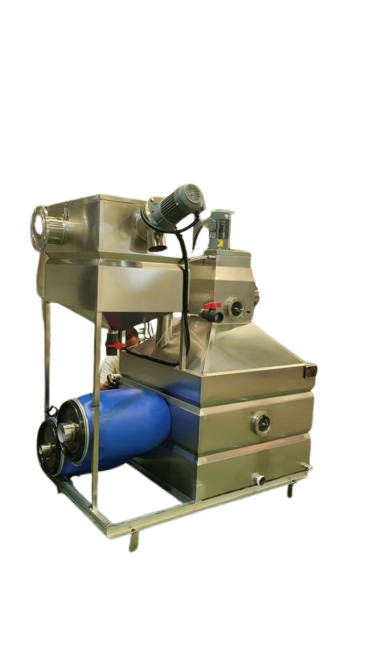

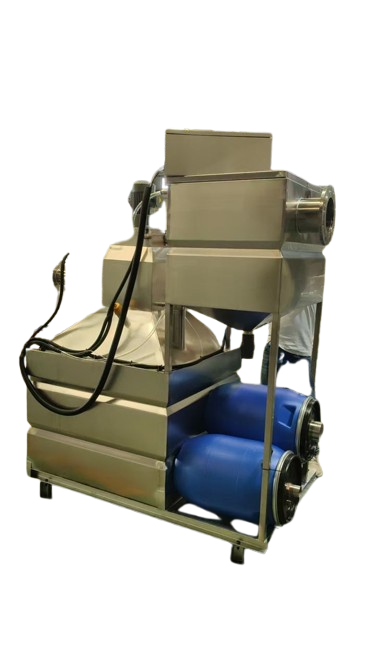

Oil-contaminated wastewater is commonly generated in industries such as food processing, petrochemicals, metal processing, automotive workshops, shipyards, and equipment maintenance facilities. These effluents often contain free oil, emulsified oil, suspended solids, grease, hydrocarbons, and sludge particles, which can severely impact downstream treatment systems and the environment if not properly removed. Avlon’s Oil & Water Separator with Thermal Filtration is designed to efficiently separate these contaminants by combining mechanical filtration, gravity separation, thermal regulation, and automated sludge handling within a compact and enclosed treatment system.

The treatment process begins when oily wastewater enters the primary screening chamber, where coarse solids and debris are removed through a durable filtration screen. This stage protects downstream equipment and prevents clogging. A spiral-driven sludge conveying mechanism continuously removes trapped solids and transfers them to a dedicated sludge collection container. By separating suspended solids at the initial stage, the system significantly improves the efficiency of subsequent oil separation processes.

Following pre-filtration, the wastewater flows into the oil separation chamber, which is designed with a conical geometry to promote effective gravity separation. Due to density differences, lighter oil droplets rise to the surface while heavier water settles below. Over time, the oil layer accumulates at the top and can be easily monitored through a built-in sight glass. To enhance separation efficiency in colder climates or for viscous oils, the system includes an automated thermal heating unit that maintains optimal temperature conditions, preventing oil solidification and ensuring smooth discharge through the automated oil collection mechanism.

Avlon’s Oil & Water Separator systems are engineered with fully enclosed construction, automated control systems, temperature-regulated heating, and remote monitoring capabilities for reliable and low-maintenance operation. The compact modular design minimizes installation space while preventing odor emissions and environmental contamination. With extensive experience in treating oily industrial wastewater, Avlon delivers robust separation systems that protect downstream treatment processes and ensure compliance with DENR wastewater discharge standards, enabling industries to manage oily effluents safely and efficiently.
